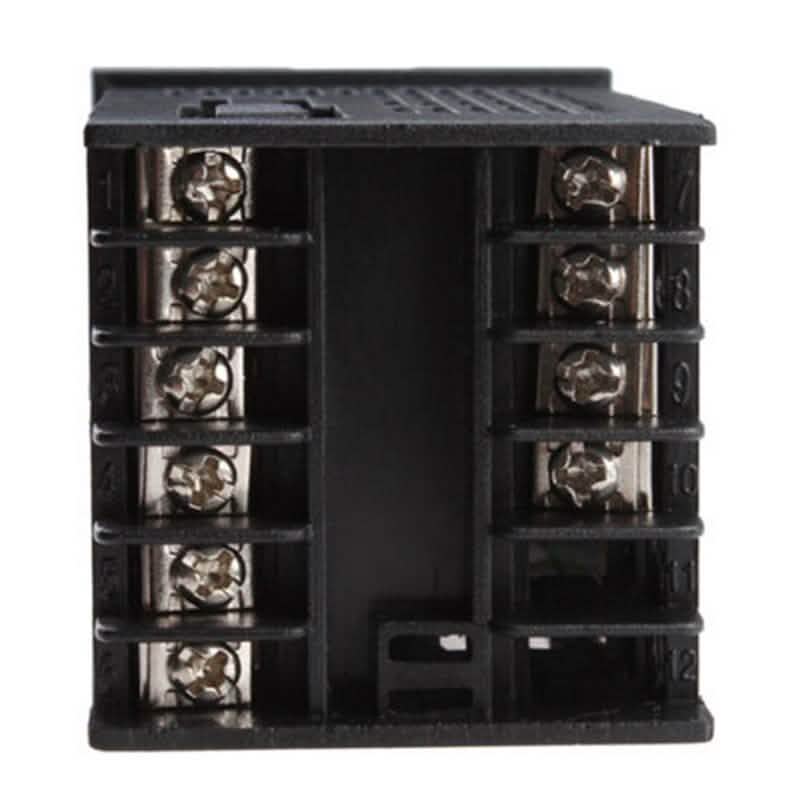

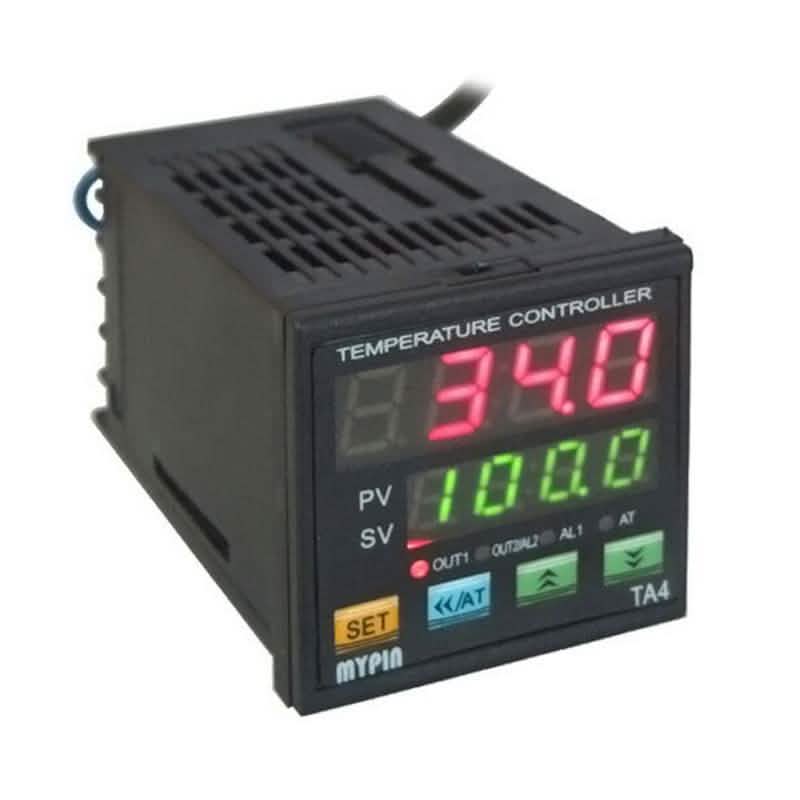

TA4-SNR Digital PID Temperature Controller 1 Alarm Relay Output TC/RTD

Widely used in auto system in line of light industry, chemistry, machine, metallurgy, ceramics, petrification industry, or temperature control and adjust system of food & beverage; oven, furnace, plastic extruder heating process etc.

Features:

• Apply with step control, 2 independent PID control for heating/cooling over temperature, pressure, level, flow, etc.
• Widely used in auto system in line of light industry, chemistry, machine, metallurgy, ceramics, petrification industry, or temperature control and adjust system of food & beverage; oven ;furnace, plastic extruder heating process etc.
• One key operation, Auto-tuning PID/ Fuzzy PID control. Easy operation, Reliable performance
• Input: TC（K, J, S, E, T, R, B）/ RTD（Pt100, CU50）universal input, (24V/30mA supply available for standard transmitter）
• Accuracy: 0.3%
• Control output: SSR
• Alarm output: RELAY. 7 kinds of alarm mode: high / low / high deviation / low deviation/ interval / out of interval/breakage alarm
• Dimensions: DIN 1/16 48 x 48 x 80mm
• IP class: IP65
• Power supply: Regular: 80-265V AC/DC 50/60HZ
• Includes: 1 x SNR PID Temperature Controller
