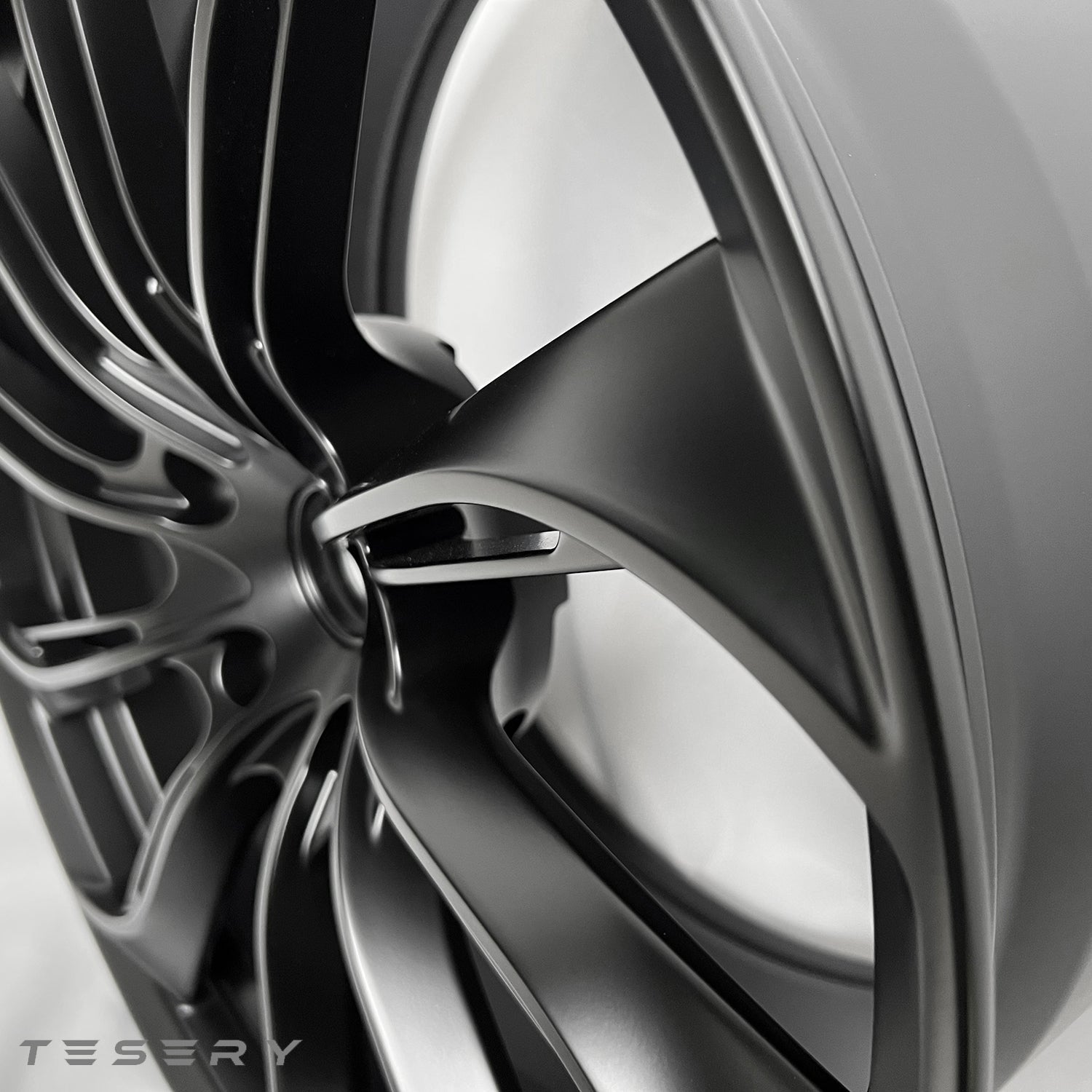

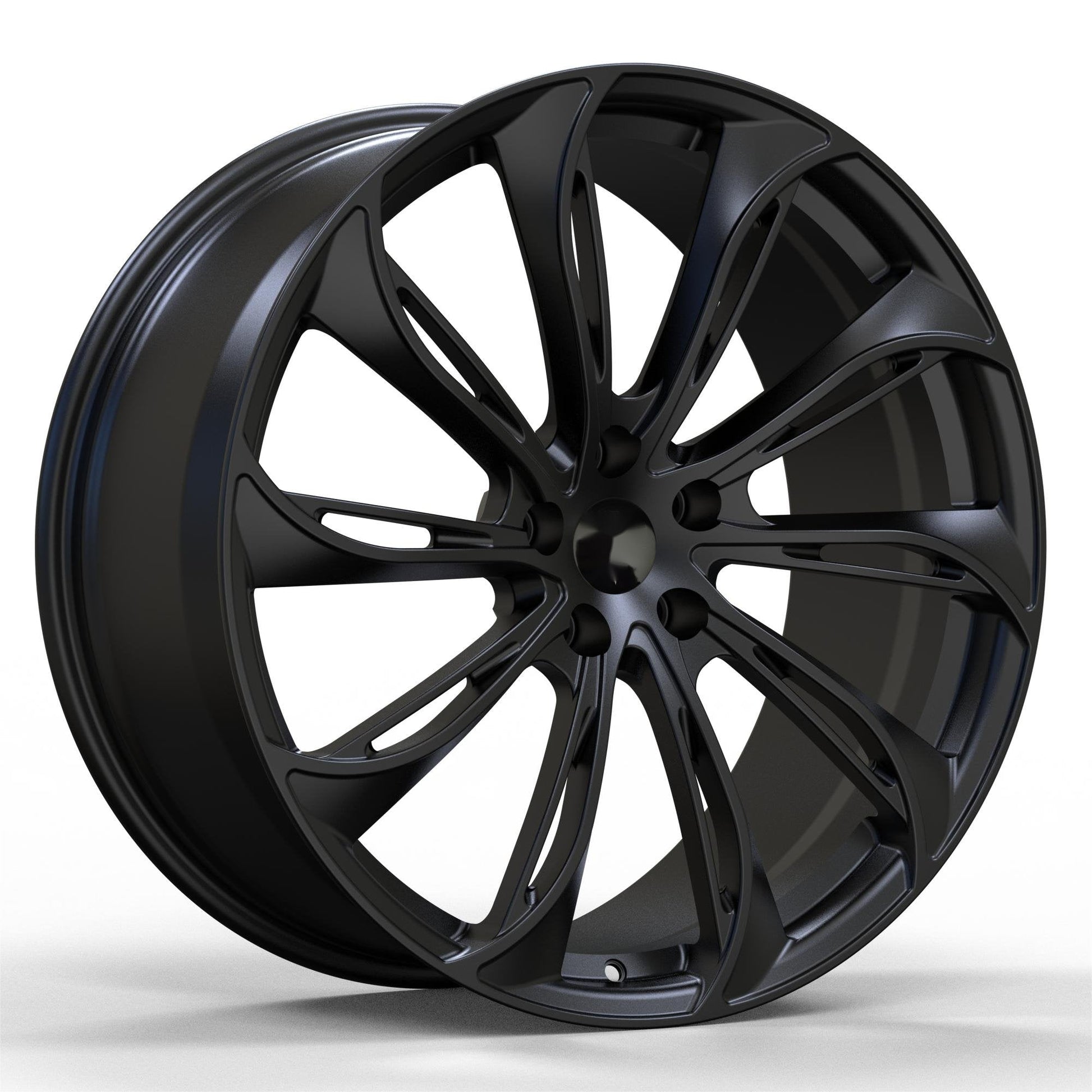

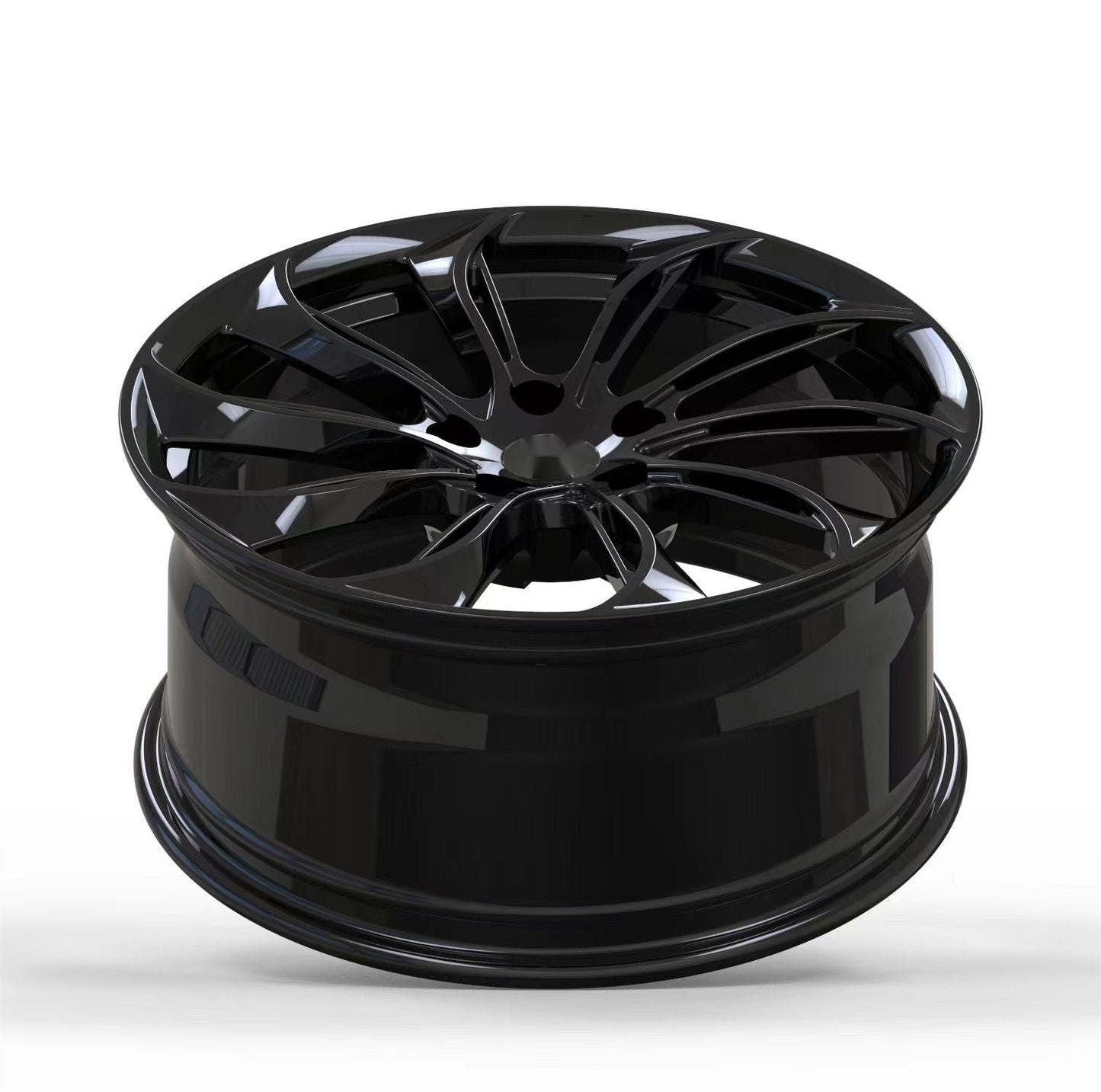

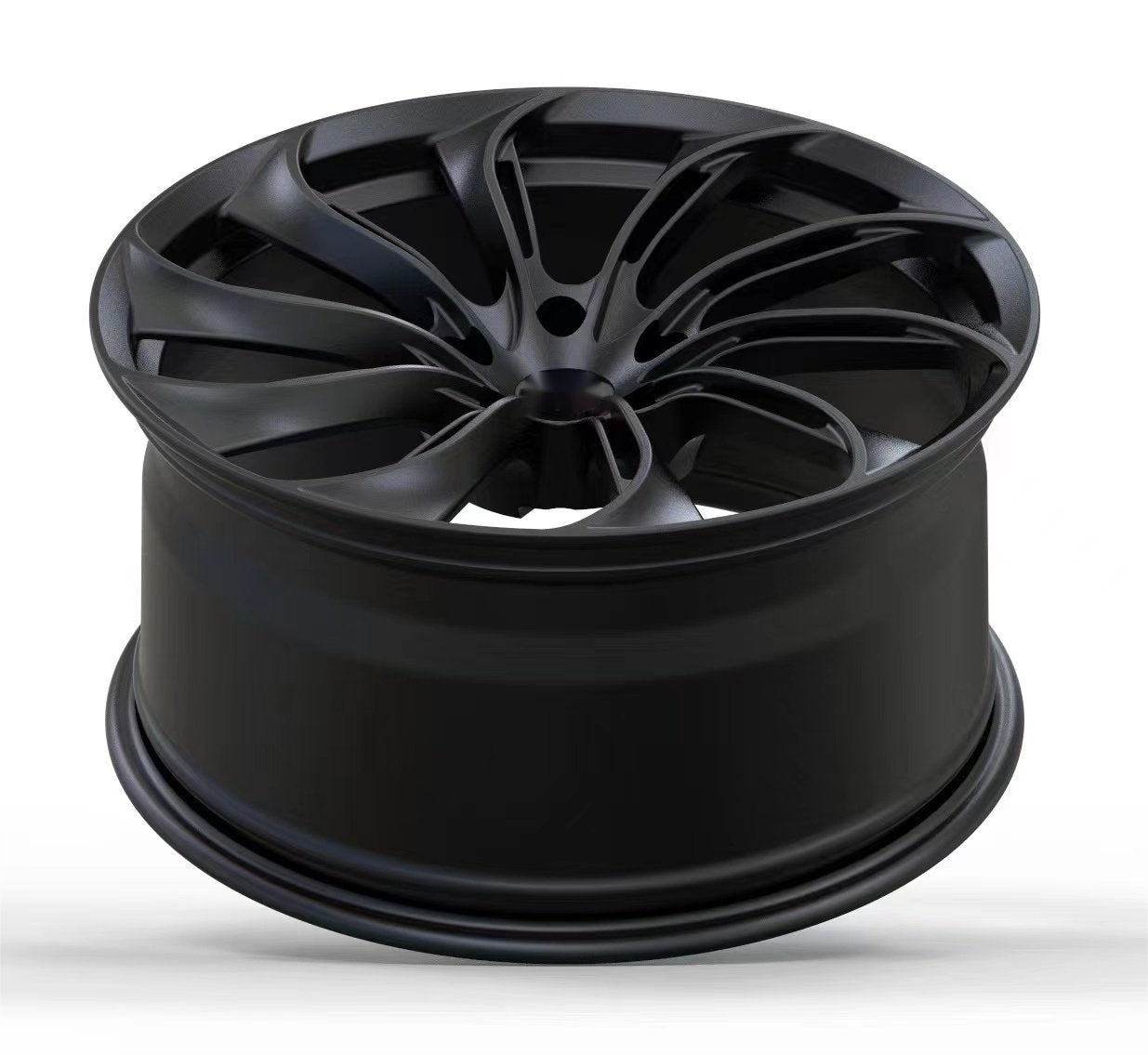

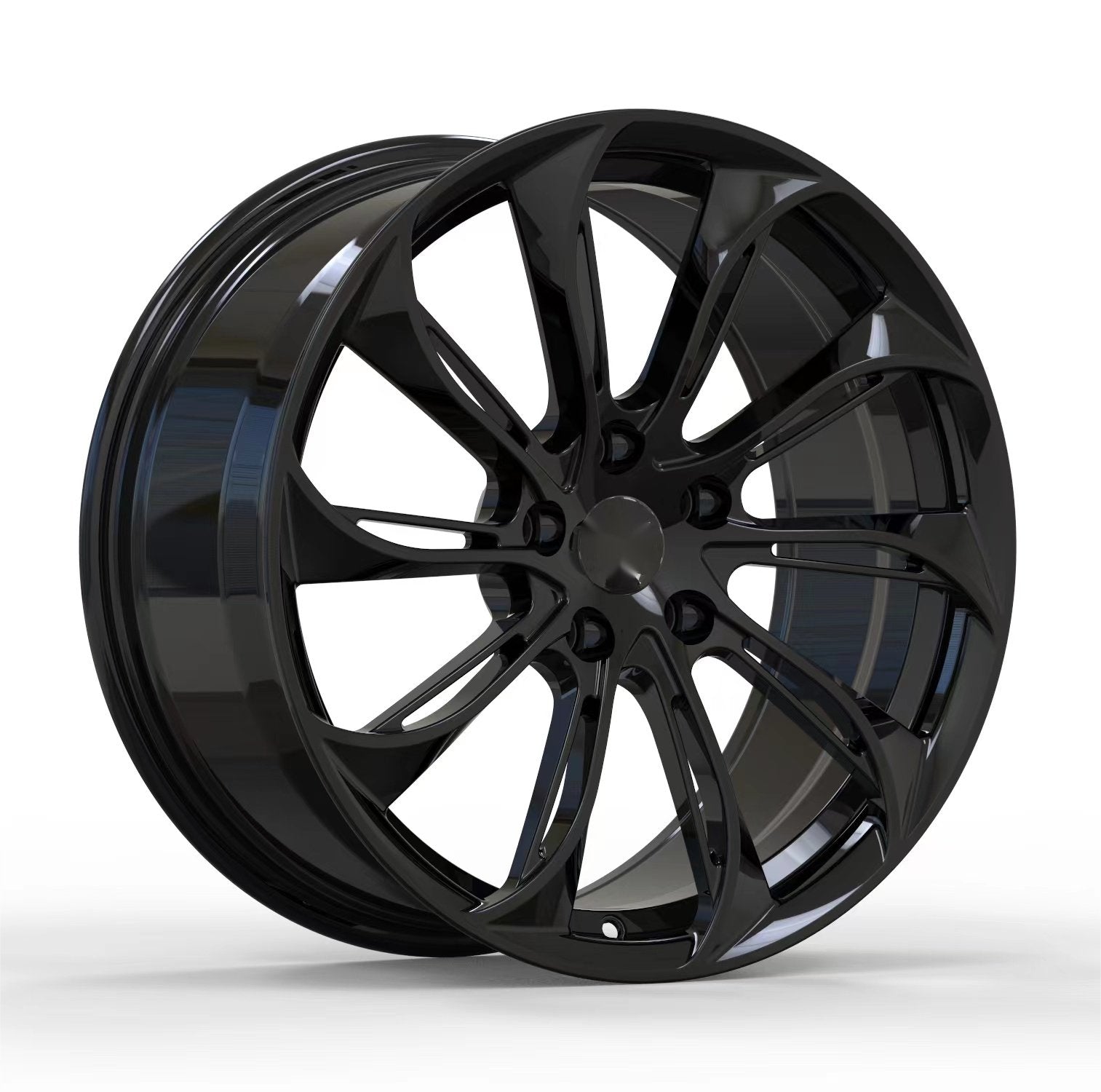

Tesery Onyx Claw Rims for Tesla Model Y/X

Tesla Model Y/ Model X SUV RIMS【Style 4】

Specialized for Teslas: Forged wheels designed exclusively for Tesla vehicles, suitable for personalized modifications, factory wheel replacements, and winter wheel use.

Manufacturing Process: Fully forged.

Material: Forged from 10,000 tons of 6061-T6 aluminum.

Safety: Manufactured in a factory with TÜV / VIA / JWL / SAE J2530 standard certifications specifically for TESERY.

Compatibility: Compatible with Tesla OEM lug nuts, TPMS sensors, and center caps.

Load Capacity: TESERY's 18-inch and 19-inch wheels have a load capacity of >=850KG/PCS, 20-inch and 21-inch wheels have a load capacity of >=950KG/PCS, and 22-inch wheels have a load capacity of >=1000KG/PCS.

Customization: Free customization for any color (surface brushing process + $400 for a set of 4 wheels), customization of text on the wheel surface (e.g., names, text logos; +$100 for a set of 4 wheels).

*For customization, please contact our customer service: service@tesery.com.

*Customized products are non-refundable and non-exchangeable unless due to quality issues.

Wheel Weights:

18-inch: 9KG/PCS - 12KG/PCS

19-inch: 9.5KG/PCS - 14KG/PCS

20-inch: 10KG/PCS - 15KG/PCS

21-inch: 10.5KG/PCS - 16KG/PCS

22-inch: 11.5KG-PCS - 17.5KG/PCS

*Different styles and offsets may result in weight differences, with more hollow wheel designs being lighter.

Tesla MODEL 3 Rims:

18' Specifications (Fits All Tesla Model 3 Variants)
Size: 18x8.5"
Offset: +35
Bolt Pattern (PCD): 5x114.3
Center Bore: 64.1
Tire Size: 235/45-18

19' Specifications (Fits All Tesla Model 3 Variants)
Size: 19X8.5" Front & 19X9.5" Rear
Offset: +35
PCD: 5X114.3
Center Bore: 64.1
Tire Size: 19x8.5": 235/40-19/19x9.5": 265/35-19

20' Specifications (Fits All Tesla Model 3 Variants)
Size: 20x8.5" Front & Rear, or 20x8.5" Front & 20x10" Rear
Offset: +35 Front, +40 Rear
Bolt Pattern (PCD): 5x114.3
Center Bore: 64.1
Tire Size: 20x8.5": 235/35-20; 20x10": 275/30-20



19'
These wheels will fit the New 2021 Model S.
Specifications
Size: 19x9.5" Front & 19x10.5" Rear
Offset: +35
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size:19x9.5": 255/45-19 / 19x10.5": 285/40-19

20'
These wheels will fit the New 2021 Model S.
Specifications
Size: 20x10.0" Front & Rear
Offset: +35
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size: 285/35-20

21'
These wheels will only fit the New 2021 Model S Long Range and Plaid.
Specifications
Size: 21x9.5" Front, 21x10.5" Rear
Offset: +35
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size:21x9.5": 265/35-21 / 21x10.5": 295/30-21

19'
These wheels will fit the New 2021 Model X.
Specifications
Size: 19x8.5"
Offset: +35
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size: 265/50-19

20'
These wheels will fit the New 2021 Model X.
Specifications
Size: 20x9.0" Front, 20x10" Rear
Offset: +35
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size: 20x9.0": 265/45-20 / 20x10": 275/45-20

22'
These wheels will fit the New 2021 Model X.
Specifications
Size: 22x9.0" Front, 22x10" Rear
Offset: +30
Bolt Pattern (PCD): 5x120
Center Bore: 64.1
Tire Size: 22x9.0": 265/35-22; 22x10": 285/35-22
